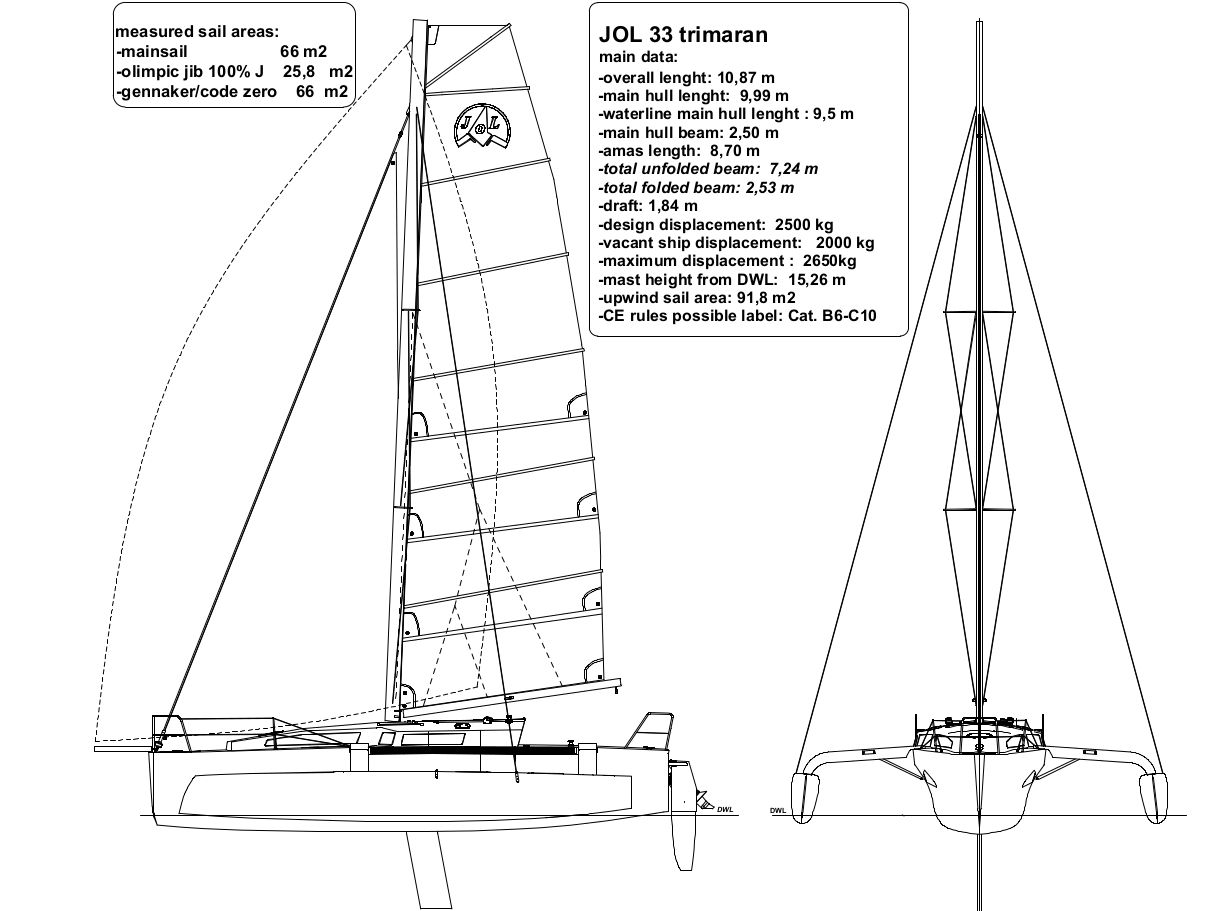

Sailplan
Technical Specification | |
| Overall length: | 10,87m |
| Main hull length: | 9,99m |
| Waterline main hull length: | 9,5m |
| Main hull beam: | 2,50m |
| Amas length: | 8,70m |
| Total unfolded beam: | 7,24m |
| Total folded beam: | 2,53m |
| Draft: | 1,84m |
| Design displacement: | 2500kg |
| Vacant ship displacement: | 2000kg |
| Maximum displacement: | 2650kg |
| Mast height from DWL: | 15,26m |
| Upwind sail area: | 91,8m2 |
| CE rules possible label: | Cat. B6/C10 | Measured sail Areas |
| Mainsail: | 66m2 |
| Olimpic jib 100% J: | 25,8m2 |
| Gennaker/Code zero: | 66m2 |
 |
|
| Side- & Front-View | |
| Design Challenge | Material |
